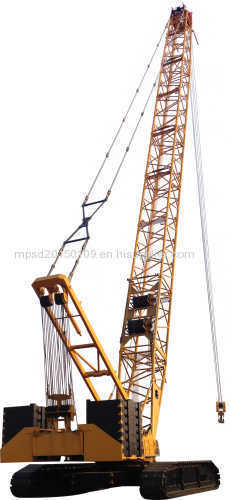

cost effective Crawler Crane CC-400 manufacturer from China Shandong Pesada Machinery and Equipment Co.,Ltd,

Price:	235000.0~300000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CC-400

Packing: standard export packing

Brand Name: MPSD

Means of Transport: Ocean

Delivery Date: within 90 days

NEW: high cost-effective

MPCC400 with a powerful hybrid drive, and an innovative concept of equipment that combines the latest technology with traditional constructive form of

Engine	Model		(VOLVO)TWD1240VE
	Rated power/ tachometer		310/2100 kw/rpm
	Max. torque/ tachometer		1719/1500 Nm/rpm
Standard staus	Boom status	Max. lifting capacity	400 t
		Boom length	24~84 m
	Boom+ Tower boom status	Max. lifting capacity	155 t
		Max .length of boom and tower boom	150 (72+78) m
		Boom angle	85°.75°.65°
	Boom+ Fixed jib status	Max. lifting capacity	66 t
		Max .length of boom and fixed jib	114 (78+36) m
		Fixed jib angle	10°.30°
	Light boom status	Max. lifting capacity	87.2 t
		Light duty boom length	81~96 m
Super lifting Working status	Boom working status	Max. lifting capacity	400 t
		Boom length	36~90 m
	Boom+ Tower boom status	Max. lifting capacity	155 t
		Max .length of boom and tower boom	162 (84+78) m
		Boom angle	85°. 75°. 65°
	Boom+ Fixed jib status	Max. lifting capacity	66 t
		Max .length of boom and fixed jib	120 (84+36) m
		Fixed jib angle	10°.30°
	Light boom status	Max. lifting capacity	71.1 t
		Light duty boom length	96~108 m
Working speed	Travelling speed		0.45~1.2 km/h
	Slewing speed		1.1 rpm
	Main hoisting speed(single rope)		135 m/min
	Auxiliary hoisting speed(single rope)		135 m/min
	Main luffing speed(single rope		48*2 m/min
	Tower boom luffing speed(single rope)		126 m/min
	Super-lifting luffing speed(single rope)		142 m/min
Mass parameter	Total weight(basic boom)		326 t
	Counterweight +pressure weight		350+30 t
	Ground pressure(standard basic boom)		0.152 mPa
